| Wide Area Measurement System (WAMS) | ||
|
WAMS is basic component of the Wide Area Protection/Emergency Control based on distributed installed, GPS-synchronized phasor measurement units. WAMS solution provided is field-proven in Bonneville of Power Administration of WSCC and accomplishes the following functions.

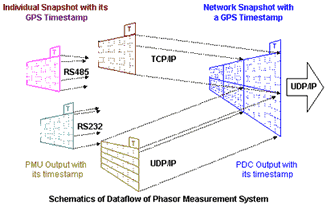

Phasor Measurement Acquisition
|
||
|
• Collect all the phasor measurement from
different phasor measurement sites. • Synchronize all the phasor measurements from different sources. • Package all the phasor measurements from all the phasor measurement as snapshot of the power network with timestamp and send to the advanced applications. • Remotely set up the phasor measurement units. • Support protocols like IEEE 1433, P1597 via serial or Ethernet. • Guarantee the minimum less than 5 ms delay with multiple CPUs and RTOS support. |
||
|
